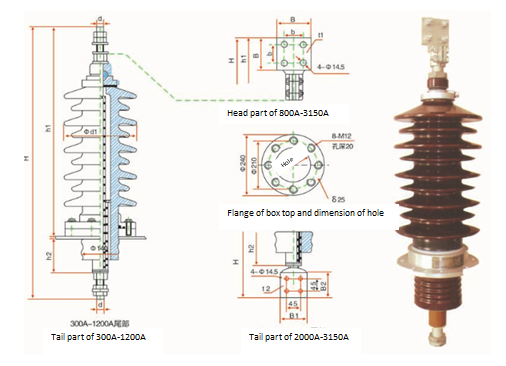

■ Outline dimension
■ Technical parameters and outline dimension of bush
|
Code |
Type-Voltage/Current KV/A |
Dimensions (mm) |
Shape |
No of Sheds |
Creep age Distance (mm) |
Weight Kg |
||||||||||
|
H |
h1 |
h2 |
d |
d1 |
B |
b |
B1 |
B2 |
t1 |
t2 |
||||||
|
WT.0300.40.5.JF |
BJF-40.5/300 |
865 |
638 |
198 |
M12 |
210 |
|
|
|
|
|
|
Single Umbrella |
7 |
875 |
20 |
|
WT.0400.40.5.JF |
BJF-40.5/400 |
887 |
653 |
201 |
M16 |
210 |
|
|
|
|
|
|
Single Umbrella |
7 |
875 |
21 |
|
WT.0600.40.5.JF |
BJF-40.5/600 |
905 |
664 |
204 |
M20 |
210 |
|
|
|
|
|
|
Single Umbrella |
7 |
875 |
22 |
|
WT.0800.40.5.JF |
BJF-40.5/800 |
1013 |
773 |
205 |
M24 |
210 |
80 |
40 |
|
|
12 |
|
Single Umbrella |
7 |
875 |
24 |
|
WT.1000.40.5.JF |
BJF-40.5/1000 |
1020 |
777 |
205 |
M30 |
210 |
80 |
40 |
|
|
12 |
|
Single Umbrella |
7 |
875 |
27 |
|
WT.1200.40.5.JF.A |
BJF-40.5/1200 |
1030 |
780 |
205 |
M33 |
210 |
80 |
40 |
|
|
12 |
|
Single Umbrella |
7 |
875 |
29 |
|
WT.1200.40.5.JF.B |
BJF-40.5/1200 |
1056 |
780 |
181 |
M33 |
210 |
80 |
40 |
70 |
75 |
12 |
12 |
Single Umbrella |
7 |
875 |
31 |
|
WT.2000.40.5.JF |
BJF-40.5/2000 |
1120 |
817 |
191 |
Φ42 |
210 |
100 |
50 |
80 |
85 |
16 |
14 |
Single Umbrella |
7 |
875 |
36 |
|
WT.3150.40.5.JF |
BJF-40.5/3150 |
1120 |
817 |
191 |
Φ48 |
210 |
100 |
50 |
80 |
85 |
16 |
16 |
Single Umbrella |
7 |
875 |
40 |
|
WT.0300.40.5.JF.W |
BJFW-40.5/300 |
950 |
723 |
198 |
M12 |
250 |
|
|
|
|
|
|
Big and small umbrellas |
11 |
1280 |
30 |
|
WT.0400.40.5.JF.W |
BJFW-40.5/400 |
972 |
738 |
201 |
M16 |
250 |
|
|
|
|
|
|
Big and small umbrellas |
11 |
1280 |
31 |
|
WT.0600.40.5.JF.W |
BJFW-40.5/600 |
990 |
749 |
204 |
M20 |
250 |
|
|
|
|
|
|
Big and small umbrellas |
11 |
1280 |
32 |
|
WT.0800.40.5.JF.W |
BJFW-40.5/800 |
1098 |
858 |
205 |
M24 |
250 |
80 |
40 |
|
|
12 |
|
Big and small umbrellas |
11 |
1280 |
34 |
|
WT.1000.40.5.JF.W |
BJFW-40.5/1000 |
1105 |
862 |
205 |
M30 |
250 |
80 |
40 |
|
|
12 |
|
Big and small umbrellas |
11 |
1280 |
38 |
|
WT.1200.40.5.JF.W.A |
BJFW-40.5/1200 |
1115 |
865 |
205 |
M33 |
250 |
80 |
40 |
|
|
12 |
|
Big and small umbrellas |
11 |
1280 |
40 |
|
WT.1200.40.5.JF.W.B |
BJFW-40.5/1200 |
1141 |
865 |
181 |
M33 |
250 |
80 |
40 |
70 |
75 |
12 |
12 |
Big and small umbrellas |
11 |
1280 |
41 |
|
WT.2000.40.5.JF.W |
BJFW-40.5/2000 |
1205 |
902 |
191 |
Φ42 |
250 |
100 |
50 |
80 |
85 |
16 |
14 |
Big and small umbrellas |
11 |
1280 |
48 |
|
WT.3150.40.5.JF.W |
BJFW-40.5/3150 |
1205 |
902 |
191 |
Φ48 |
250 |
100 |
50 |
80 |
85 |
16 |
16 |
Big and small umbrellas |
11 |
1280 |
52 |
