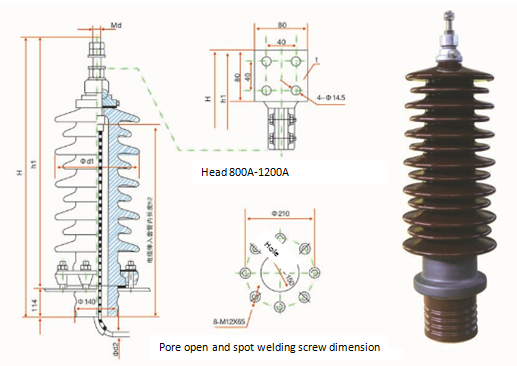

■ Outline dimension
■ Technical parameters and outline dimension of bush
|
Code |
Type-Voltage/Current KV/A |
Dimensions (mm) |
Shape |
No of Sheds |
Creep age Distance(mm) |
Weight Kg |
||||||
|
H |
h1 |
h2 |
Md |
d1 |
d2 |
t |
||||||
|
WT.0035.40.JL |
BJL-40/35 |
755 |
641 |
571 |
M16 |
210 |
8 |
|
Single Umbrella |
7 |
875 |
18 |
|
WT.0100.40.JL |
BJL-40/100 |
755 |
641 |
571 |
M16 |
210 |
10 |
|
Single Umbrella |
7 |
875 |
18 |
|
WT.0250.40.JL |
BJL-40/250 |
755 |
641 |
571 |
M16 |
210 |
20 |
|
Single Umbrella |
7 |
875 |
18 |
|
WT.0400.40.JL |
BJL-40/400 |
755 |
641 |
571 |
M16 |
210 |
23 |
|
Single Umbrella |
7 |
875 |
18 |
|
WT.0600.40.JL |
BJL-40/600 |
755 |
641 |
571 |
M20 |
210 |
27 |
|
Single Umbrella |
7 |
875 |
18 |
|
WT.0800.40.JL |
BJL-40/600 |
855 |
741 |
571 |
M24 |
210 |
30 |
12 |
Single Umbrella |
7 |
875 |
20 |
|
WT.1000.40.JL |
BJL-40/1000 |
855 |
741 |
571 |
M30 |
210 |
35 |
12 |
Single Umbrella |
7 |
875 |
20 |
|
WT.1200.40.JL |
BJL-40/1200 |
840 |
741 |
571 |
M33 |
210 |
40 |
12 |
Single Umbrella |
7 |
875 |
21 |
|
WT.0035.40.JLW |
BJLW-40/35 |
840 |
726 |
656 |
M16 |
250 |
8 |
|
Big and small umbrellas |
11 |
1280 |
29 |
|
WT.0100.40.JLW |
BJLW-40/100 |
840 |
726 |
656 |
M16 |
250 |
10 |
|
Big and small umbrellas |
11 |
1280 |
29 |
|
WT.0250.40.JLW |
BJLW-40/250 |
840 |
726 |
656 |
M16 |
250 |
20 |
|
Big and small umbrellas |
11 |
1280 |
29 |
|
WT.0400.40.JLW |
BJLW-40/400 |
840 |
726 |
656 |
M16 |
250 |
23 |
|
Big and small umbrellas |
11 |
1280 |
29 |
|
WT.0600.40.JLW |
BJLW-40/600 |
940 |
726 |
656 |
M20 |
250 |
27 |
|
Big and small umbrellas |
11 |
1280 |
29 |
|
WT.0800.40.JLW |
BJLW-40/600 |
940 |
826 |
656 |
M24 |
250 |
30 |
12 |
Big and small umbrellas |
11 |
1280 |
31 |
|
WT.1000.40.JLW |
BJLW-40/1000 |
940 |
826 |
656 |
M30 |
250 |
35 |
12 |
Big and small umbrellas |
11 |
1280 |
31 |
|
WT.1200.40.JLW |
BJLW-40/1200 |
940 |
826 |
656 |
M33 |
250 |
40 |
12 |
Big and small umbrellas |
11 |
1280 |
32 |
|
WT.0035.40.JLW.A |
BJLW-40/35 |
815 |
701 |
631 |
M16 |
240 |
8 |
|
Big and small umbrellas |
13 |
1400 |
28 |
|
WT.0100.40.JLW.A |
BJLW-40/100 |
815 |
701 |
631 |
M16 |
240 |
10 |
|
Big and small umbrellas |
13 |
1400 |
28 |
|
WT.0250.40.JLW.A |
BJLW-40/250 |
815 |
701 |
631 |
M16 |
240 |
20 |
|
Big and small umbrellas |
13 |
1400 |
28 |
|
WT.0400.40.JLW.A |
BJLW-40/400 |
815 |
701 |
631 |
M16 |
240 |
23 |
|
Big and small umbrellas |
13 |
1400 |
28 |
|
WT.0600.40.JLW.A |
BJLW-40/600 |
815 |
701 |
631 |
M20 |
240 |
27 |
|
Big and small umbrellas |
3 |
1400 |
28 |
