■ Outline dimension

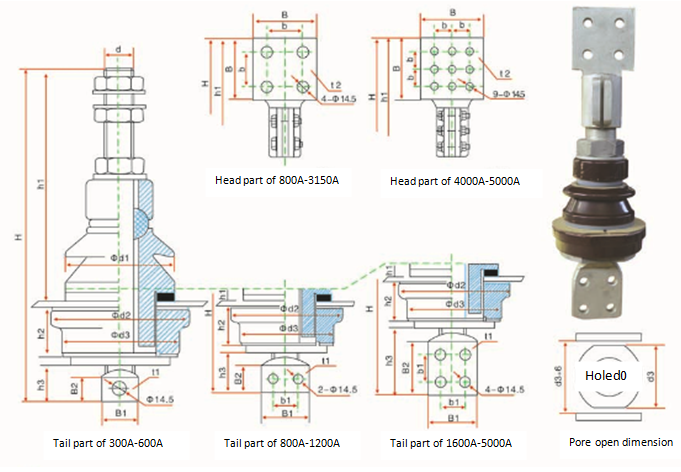

■ Technical parameters and outline dimension of bush
|
Code |
Type-Voltage/Current KV/A |
Dimensions (mm) |
Weight Kg |
|||||||||||||||
|
H |
h1 |
h2 |
h3 |
d |
d0 |
d1 |
d2 |
d3 |
B |
b |
B1 |
B2 |
b1 |
t1 |
t2 |
|||
|
WT.0300.2 |
BF-1/300 |
203 |
132 |
34 |
33 |
M12 |
30 |
50 |
65 |
55 |
|
|
25 |
25 |
|
4 |
|
0.7 |
|
WT.0400.2 |
BF-1/400 |
232 |
150 |
34 |
42 |
M16 |
50 |
75 |
95 |
80 |
|
|
30 |
30 |
|
6 |
|
1.4 |
|
WT.0600.2 |
BF-1/600 |
242 |
160 |
34 |
42 |
M20 |
50 |
75 |
95 |
80 |
|
|
38 |
30 |
|
8 |
|
1.7 |
|
WT.0800.3 |
BF-1/800 |
372 |
281 |
39 |
42 |
M24 |
60 |
90 |
110 |
100 |
80 |
40 |
60 |
30 |
30 |
8 |
12 |
5.3 |
|
WT.1000.3 |
BF-1/1000 |
372 |
281 |
39 |
42 |
M30 |
60 |
90 |
110 |
100 |
80 |
40 |
70 |
30 |
45 |
8 |
12 |
5.5 |
|
WT.1200.3 |
BF-1/1200 |
372 |
281 |
39 |
42 |
M33 |
60 |
90 |
110 |
100 |
80 |
40 |
70 |
30 |
45 |
8 |
12 |
6.3 |
|
WT.1600.2 |
BF-1/1600 |
483 |
327 |
39 |
42 |
Φ38 |
70 |
100 |
130 |
110 |
100 |
50 |
80 |
85 |
45 |
12 |
16 |
10 |
|
WT.2000.2 |
BF-1/2000 |
486 |
332 |
39 |
105 |
Φ42 |
85 |
115 |
150 |
140 |
100 |
50 |
80 |
85 |
45 |
14 |
16 |
11 |
|
WT.3150.2.A |
BF-1/3150 |
486 |
332 |
39 |
105 |
Φ48 |
85 |
115 |
150 |
140 |
100 |
50 |
80 |
85 |
45 |
16 |
16 |
12.5 |
|
WT.3150.2.B |
BF-1/3150 |
506 |
332 |
39 |
105 |
Φ48 |
85 |
115 |
150 |
140 |
120 |
60 |
80 |
85 |
45 |
16 |
16 |
13 |
|
WT.4000.2 |
BF-1/4000 |
581 |
420 |
44 |
105 |
Φ52 |
95 |
130 |
170 |
150 |
150 |
50 |
80 |
85 |
45 |
18 |
20 |
21 |
|
WT.5000.2 |
BF-1/5000 |
581 |
420 |
44 |
105 |
Φ56 |
95 |
130 |
170 |
150 |
150 |
50 |
80 |
85 |
45 |
18 |
22 |
23 |
